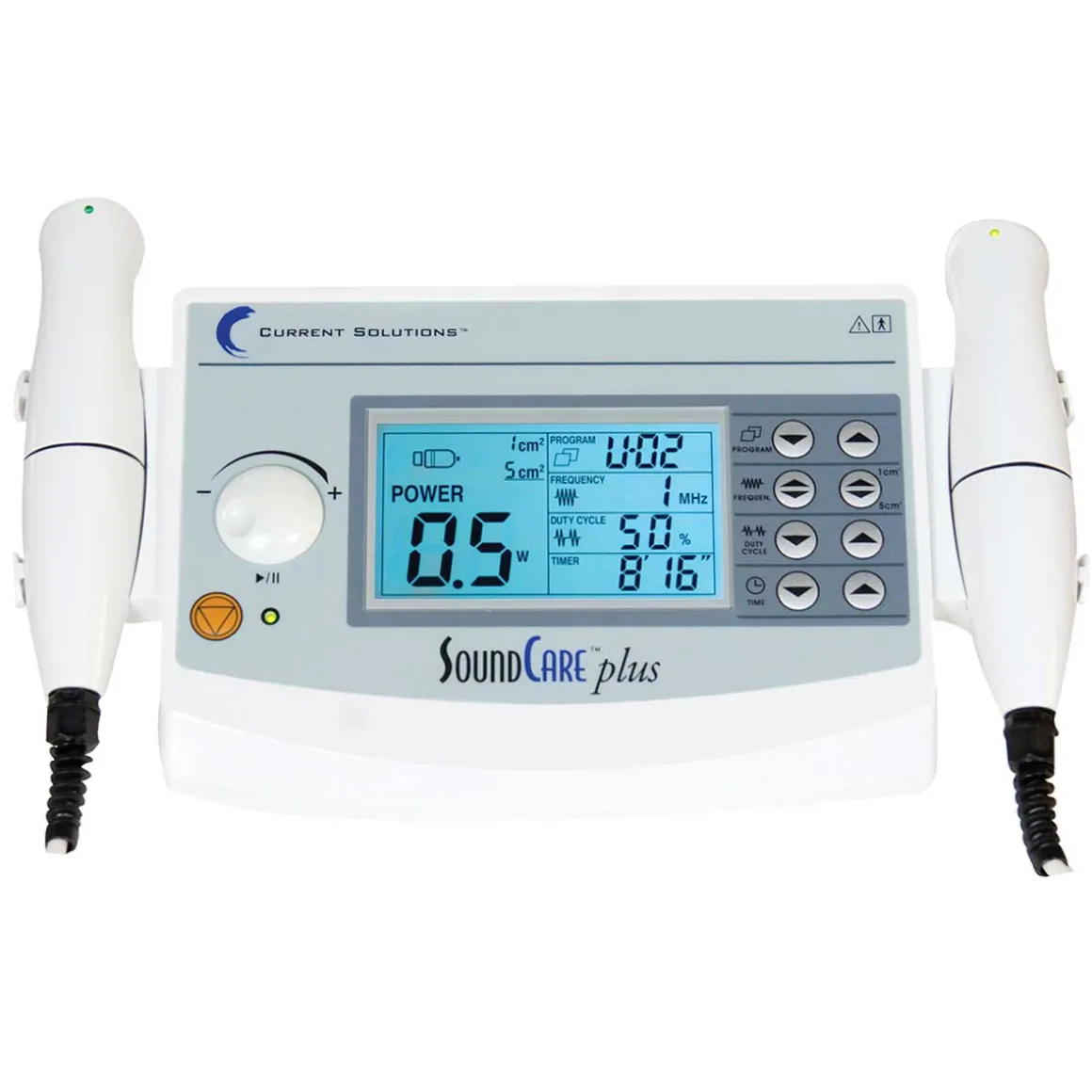

SoundCare Plus Ultrasound Device

The SoundCare Plus professional ultrasound device with two sound heads,1 cm2 and 5 cm2, can be used simultaneously; 20 user-defined presets with pulsed and continuous, 1 MHz and 3 MHz frequencies, is simple to operate for the treatment of chronic and acute muscular pain.

Specifications u0026amp; Features

• Simple to use.
• Treatment of chronic and acute muscular pain.
• Two sound heads,1 cm2 and 5 cm2.
• 20 user-defined presets with pulsed and continuous.
• 1 MHz and 3 MHz frequencies.
• Acoustic Frequency: 1 MHz ± 10%, 3 MHz ± 10%
• Pulse Repetition Rate: 100 Hz ± 10%
• Duty Factor: 10% – 100%, Stepping 10%
• Timer: Max 30 minutes
• Effective Radiating Area: 5.0 cm2 ± 20%; 1.0 cm2 ± 20%
• Actual Intensity: 3.0 w/cm2 ± 20% (1.0 MHz), 3.0 w/cm2 ± 20% (3.0 MHz)
• Raw (Max): 5.0
• Beam Type: Collimated
• Waterproof Grade: PX7 only for treatment head
• Output Power: 0.5 – 10.0 W ± 20%, when duty factor ≥ 80% for 5cm2, 0.5 – 15.0 W ± 20%, when duty factor ≤ 70% for 5cm2, 0.1 – 2.0 W ± 20%, when duty factor ≥ 80% for 1cm2, 0.1 – 3.0 W ± 20%, when duty factor ≤ 70% for 1 cm2
• Two-year warranty
